Product desciption :
highly extending bellow covers black or yellow colour for protecting precision transmission parts
Structure .
A: Flange :
Use proper thickness of plate to fix at both sides or the protective curtain or punched stiffener , and the other side should be fixed at the guide way .
Normally a SPCC sheet metal is applied . upon customer's request , any shape , thickness , other metal or mounting method are available.
B: Stiffener :
The stiffener is a PVC board (meet the Rohs ) that provides a suport for the inside of a protective curtain .
It's not only to reduce the contact between the protective curtain and the slideway.
but also to provide a solid support ,rigidity and impact-resistance .
The stiffener is made from wear-resistant plastic with self-lubrication feature.
the available thickness is 0.5/0.8/1.0/1.5/2.0 /3.0 mm. (Note : the increased thickness
of stiffener may affect the compressed size of the protective curtain .
C: Protective curtain :
The standard material of protective curtain is a black eco-friendly material
coated with PUR at both sides . it features long service life . when requested ,
a single side with yellow or white color is available . the protective curtain
and stiffener are welded securely without sewing lines or holes . it features
excellent water-resistance and oil-resistance .the material thickness of the protective
curtain may vary with customers' enviromental temperature, machining condition and chemical reaction .
Restricted belf
The restricted belt is necessary to prevent over-extending of corrugation, and suitable
doe fast moving speed ,vertical movement or large-scale protective curtain.
the additional restricted belt is fitted for the protective curtain used in a closed
confined space for extending the service life of protective curtain .
A. Flange , B=PUR protective curtain ,C= weld forming ,D=stiffener ,E=sliding mechanism .
Top quality PUR eco-friendly protective curtain/customized shapes and sizes .
Suitable for protecting precision transmission parts .
various cover materials to choose from .
available to equip with sliding mechanism and synchronized mechanism.
Flat bellows
| fold height(e) | extensions per fold(AZ) |
| 15 | 14 |
| 17 | 18 |
| 20 | 24 |
| 24 | 32 |
| 30 | 44 |
| 35 | 54 |
| 40 | 64 |
| 45 | 74 |
| all dim is mm | |
Folded bellow
| fold height (e) | extensions per fold (az) |
| 15 | 18 |
| 17 | 22 |
| 20 | 28 |
| 24 | 36 |
| 30 | 48 |
| 35 | 58 |
| 40 | 68 |
| 45 | 78 |
| all dim is mm | |
|
|

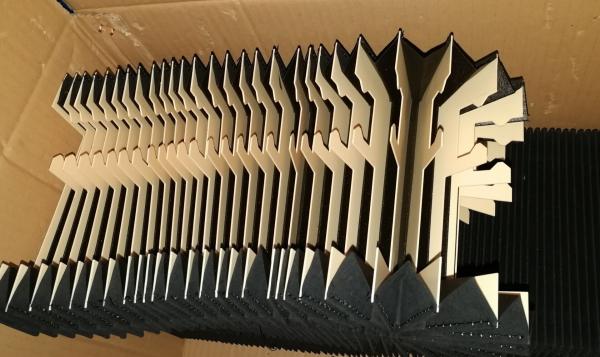

excellent oil-resistance folded bellow covers black colour for protect laser machine slide guide Images
|
